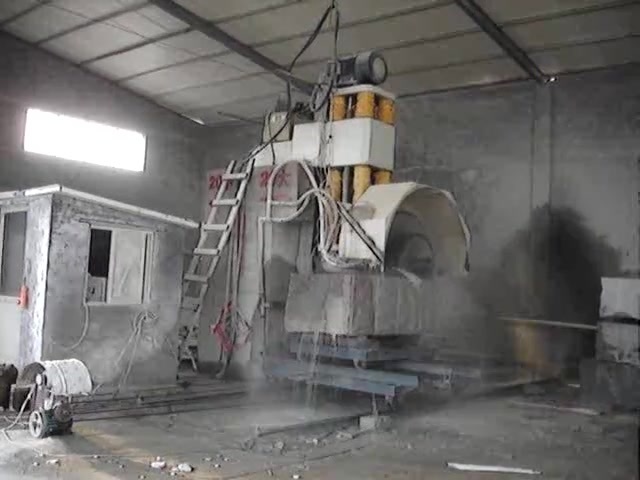

Single Arm Hydraulic Multi-discs Stone Cutting Machine
Key words:
Single Arm Hydraulic Multi-discs Stone Cutting Machine
Single Arm Hydraulic Multi-discs Stone Cutting Machine
Classification:
Product Description
Equipment introduction
This machine adopts a four-column hydraulic locking structure with good overall rigidity and small gap, which effectively reduces the shaking caused by the cutting process. The produced plates have high precision and good flatness. At the same time, it has achieved remarkable results in increasing the service life of the diamond segments and reducing electricity consumption.
The lifting column adopts a unique combined double sealing device, which greatly reduces the wear of dust on the mechanical hydraulic components and effectively extends the service life of the machine. The original lubrication system effectively reduces the number of machine maintenance and reduces the possibility of component wear.
Technical parameter
|
Model |
WYDJ8 |
WYDJ12 |
WYDJ16 |
WYDJ18 |
WYDJ22 |
|
Diameter of disc(mm) |
1000-2200 |
||||
|
Number of disc |
8 |
12 |
16 |
18 |
22 |
|
Main motor power (kw) |
37/45 |
45/55 |
75 |
90 |
110 |
|
Weight (kgs) |
7500 |
8000 |
8500 |
9000 |
11500 |
- 产品描述
-
- Commodity name: Single Arm Hydraulic Multi-discs Stone Cutting Machine
This machine adopts a four-column hydraulic locking structure with good overall rigidity and small gap, which effectively reduces the shaking caused by the cutting process. The produced plates have high precision and good flatness. At the same time, it has achieved remarkable results in increasing the service life of the diamond segments and reducing electricity consumption.
Equipment introduction
This machine adopts a four-column hydraulic locking structure with good overall rigidity and small gap, which effectively reduces the shaking caused by the cutting process. The produced plates have high precision and good flatness. At the same time, it has achieved remarkable results in increasing the service life of the diamond segments and reducing electricity consumption.
The lifting column adopts a unique combined double sealing device, which greatly reduces the wear of dust on the mechanical hydraulic components and effectively extends the service life of the machine. The original lubrication system effectively reduces the number of machine maintenance and reduces the possibility of component wear.
Technical parameter
Model
WYDJ8
WYDJ12
WYDJ16
WYDJ18
WYDJ22
Diameter of disc(mm)
1000-2200
Number of disc
8
12
16
18
22
Main motor power (kw)
37/45
45/55
75
90
110
Weight (kgs)
7500
8000
8500
9000
11500

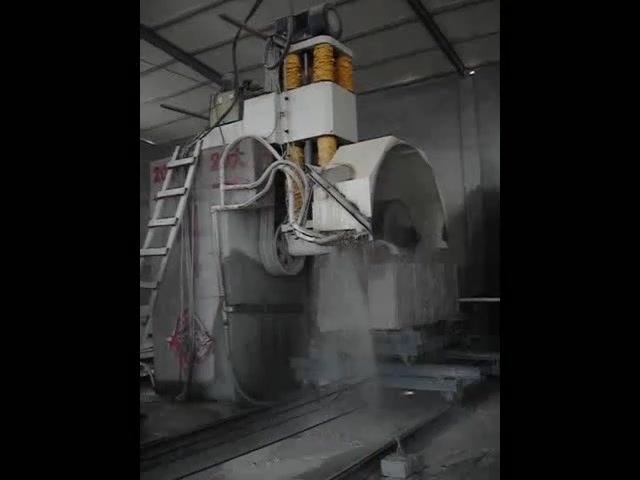

Product Video
WYDJ160A Multiple Videos
WYDJ160A
WYDJ160A Side view
WYDJ160A

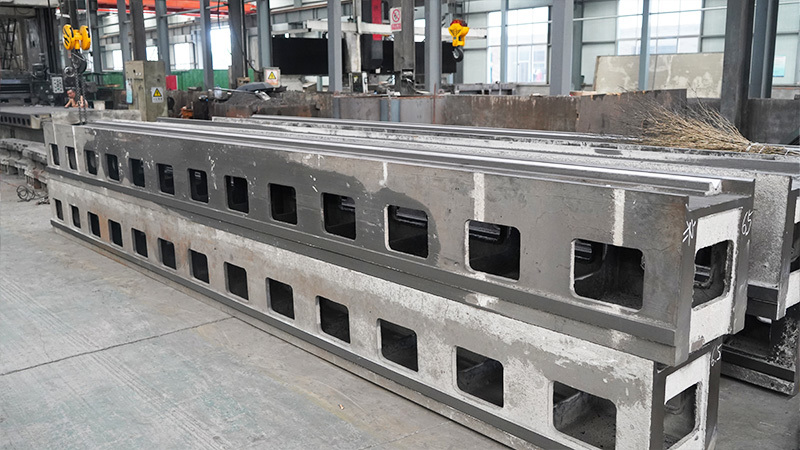

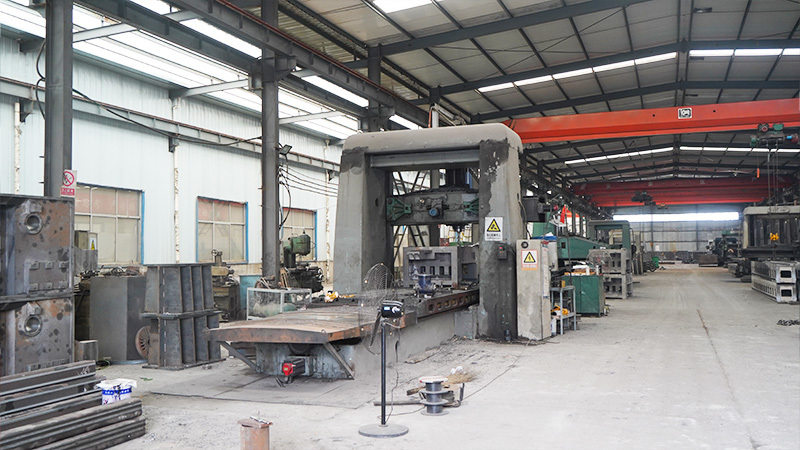

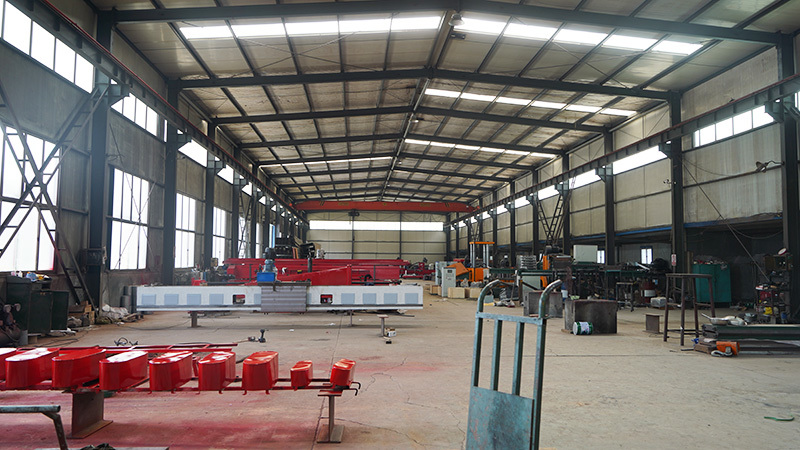

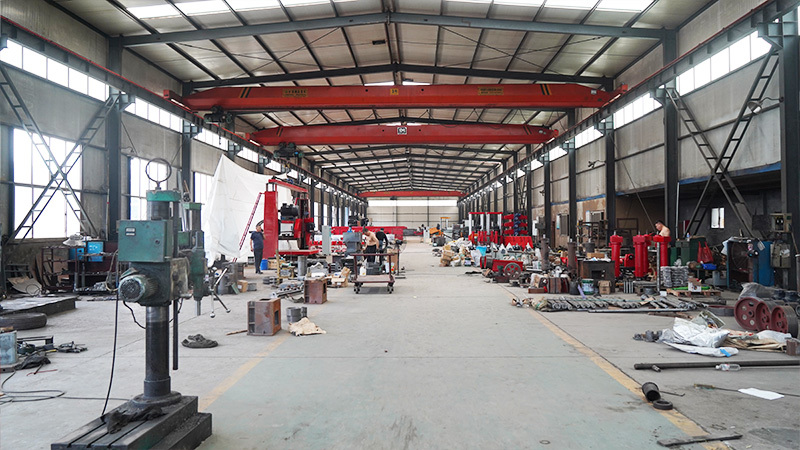

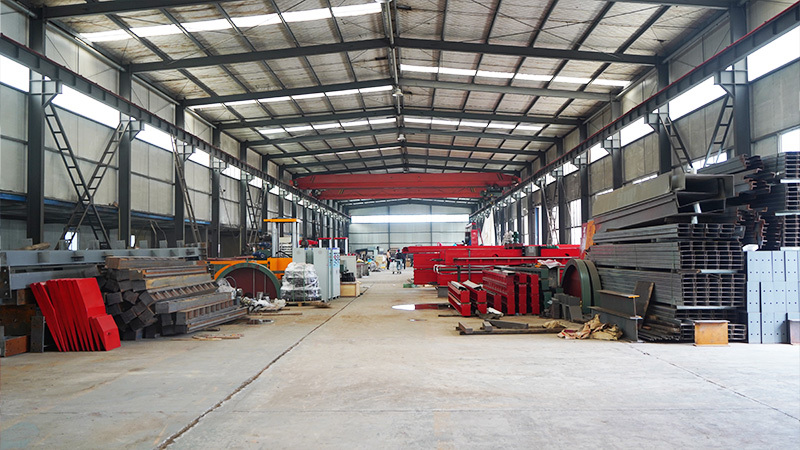

Production Equipment

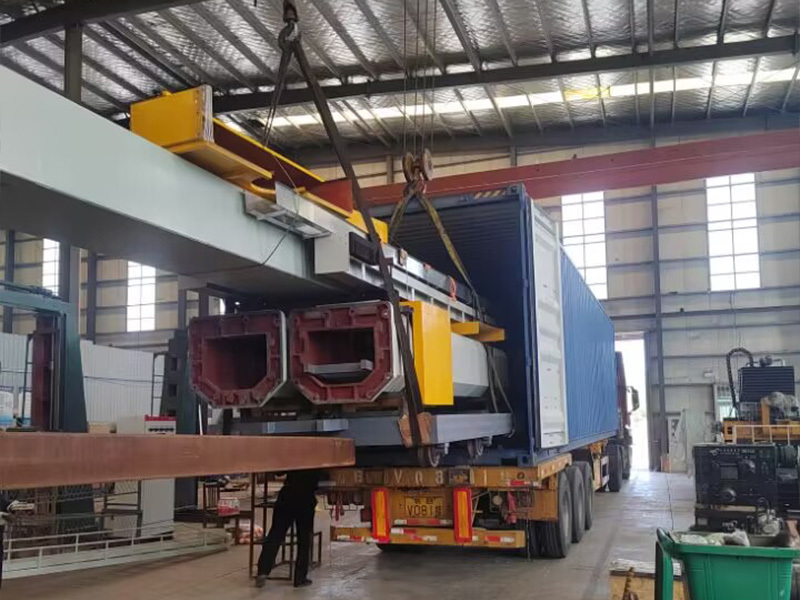

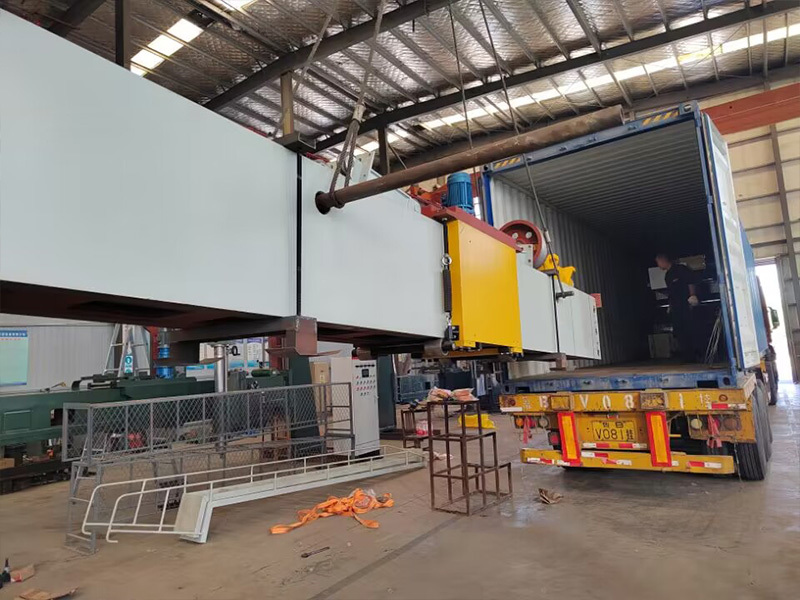

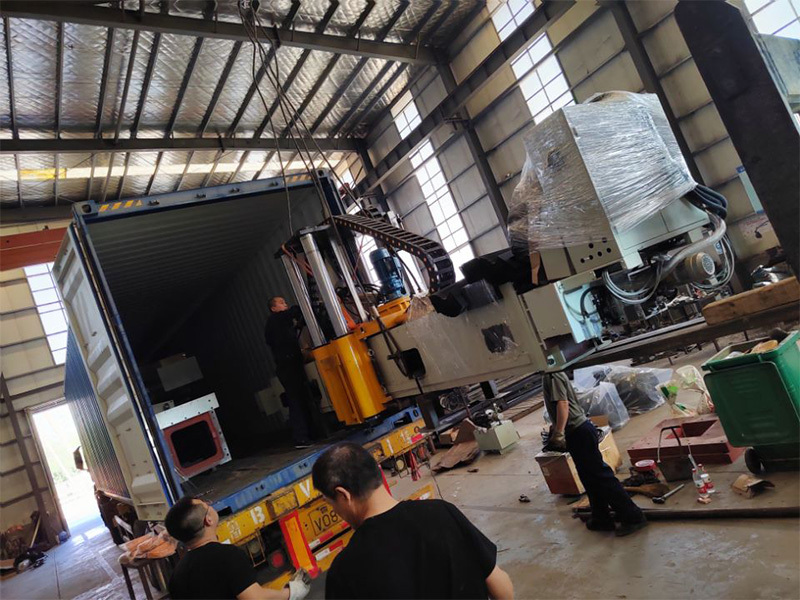

Container shipments
Communication and exchange
FAQ
I need a stone cutting machine , can you give me some suggestions?
Sure, we will give suggestions of the most suitable machine and total solution of whole factory . Before that, we need to know some information, such as stone type, capacity, site condition ,etc., to determine the main parameters.
Which kind of materials can be processed on this machine?
marble B:Granite
Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience, As the machine made by JUXING factory, the quality can be trusted, and the most important thing is that we can do better after-sales service. You are welcome to our company.
How should I pay for my order ?
You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures / videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
How about the machine installation ?
if you need ,we can send engineer to your factory site to help you installation and train your operation engineer.
