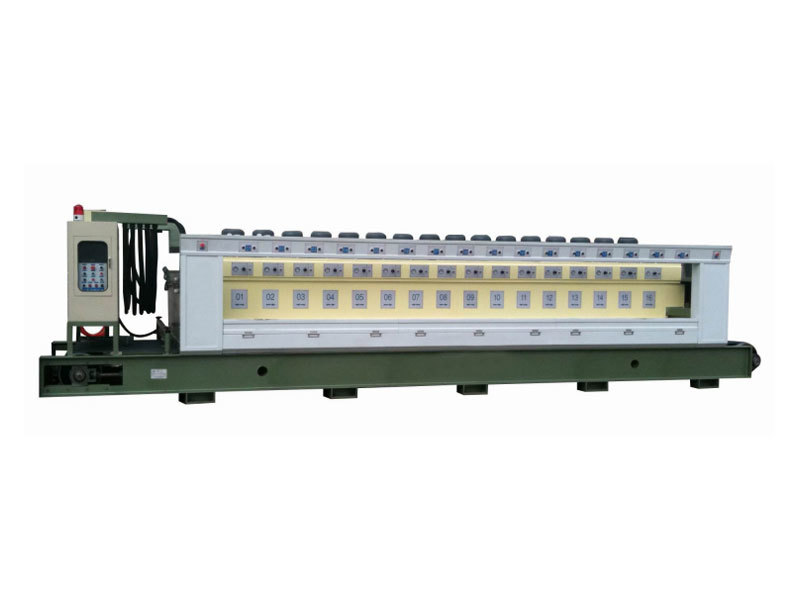

Automatic Stone Grinder Polishing Machine
Key words:
Automatic Stone Grinder Polishing Machine
Automatic Stone Grinder Polishing Machine
Classification:
Product Description
JX100 12-head automatic grinder polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency,lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penulation speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.
Main technical parameters
|
Processing width |
300-1000mm |
|
Grinding disc diameter |
200mm |
|
Processing thickness |
10-40mm |
|
Grinding head quantity |
12pieces |
|
Grinding head motor power |
12*7.5kw |
|
Transmission-speed for belt |
0-1600mm/min |
|
Compressor provide pressure |
0.60-0.8Mpa |
|
Cooling water pressure |
≥0.15Mpa |
|
Water consumption of single-head |
≥25L/min |
|
Total weight |
10000kgs |
|
Installation size |
7200*2360*2560mm |
JX100 16-head automatic grinder polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency, lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penular speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.
Main technical parameters
|
Processing width |
300-1000mm |
|
Processing thickness |
10-50mm |
|
Grinding head quantity |
16pieces |
|
Grinding head motor power |
16*7.5kw |
|
Transmission belt motor power |
4kw |
|
Transverse beam pendular motor power |
2*4kw |
|
Clean motor power |
1.1kw |
|
Fan motor power |
2.2kw |
|
Transmission-speed for belt |
0-3000mm/min |
|
Compressor provide pressure |
0.60-0.8Mpa |
|
Cooling water pressure |
≥0.15Mpa |
|
Water consumption of single-head |
≥25L/min |
|
Total weight |
13000kgs |
|
Installation size |
8600*2360*2560mm |
JX100 20-head automatic stone polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency, lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penulation speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.
Main technical parameters
|
Processing width |
300-1000mm |
|
Processing thickness |
10-50mm |
|
Grinding head quantity |
20pieces |
|
Grinding head motor power |
20*7.5kw |
|
Transmission belt motor power |
4kw |
|
Transverse beam pendular motor power |
2*4kw |
|
Clean motor power |
1.1kw |
|
Fan motor power |
2.2kw |
|
Transmission-speed for belt |
0-3000mm/min |
|
Compressor provide pressure |
0.60-0.8Mpa |
|
Cooling water pressure |
≥0.15Mpa |
|
Water consumption of single-head |
≥25L/min |
|
Total weight |
14000kgs |
|
Installation size |
10000*2150*2560mm |
- 产品描述
-
- Commodity name: Automatic Stone Grinder Polishing Machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
JX100 12-head automatic grinder polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency,lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penulation speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.Main technical parameters
Processing width
300-1000mm
Grinding disc diameter
200mm
Processing thickness
10-40mm
Grinding head quantity
12pieces
Grinding head motor power
12*7.5kw
Transmission-speed for belt
0-1600mm/min
Compressor provide pressure
0.60-0.8Mpa
Cooling water pressure
≥0.15Mpa
Water consumption of single-head
≥25L/min
Total weight
10000kgs
Installation size
7200*2360*2560mm
JX100 16-head automatic grinder polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency, lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penular speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.Main technical parameters
Processing width
300-1000mm
Processing thickness
10-50mm
Grinding head quantity
16pieces
Grinding head motor power
16*7.5kw
Transmission belt motor power
4kw
Transverse beam pendular motor power
2*4kw
Clean motor power
1.1kw
Fan motor power
2.2kw
Transmission-speed for belt
0-3000mm/min
Compressor provide pressure
0.60-0.8Mpa
Cooling water pressure
≥0.15Mpa
Water consumption of single-head
≥25L/min
Total weight
13000kgs
Installation size
8600*2360*2560mm
JX100 20-head automatic stone polishing machine
It is suitable for grinding and polishing slab. It is with logical construction; reliable performance; highly efficiency running. Control system is advanced, which adopts PLC control and with text display, which realizes intelligence control.
It has the following features:
1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency, lower abrasive exhaustion rate, lower slab broken rate.
2.It uses transmission belt with the same thickness to confirm slab with the same thickness.
3.The moving speed of the transmission belt and penulation speed of transverse-beam can be adjusted by transducer.
4.This machine is with lower exhaustion power, lower cost; higher grinding and polishing efficiency; easy operation; maintenance simple.Main technical parameters
Processing width
300-1000mm
Processing thickness
10-50mm
Grinding head quantity
20pieces
Grinding head motor power
20*7.5kw
Transmission belt motor power
4kw
Transverse beam pendular motor power
2*4kw
Clean motor power
1.1kw
Fan motor power
2.2kw
Transmission-speed for belt
0-3000mm/min
Compressor provide pressure
0.60-0.8Mpa
Cooling water pressure
≥0.15Mpa
Water consumption of single-head
≥25L/min
Total weight
14000kgs
Installation size
10000*2150*2560mm

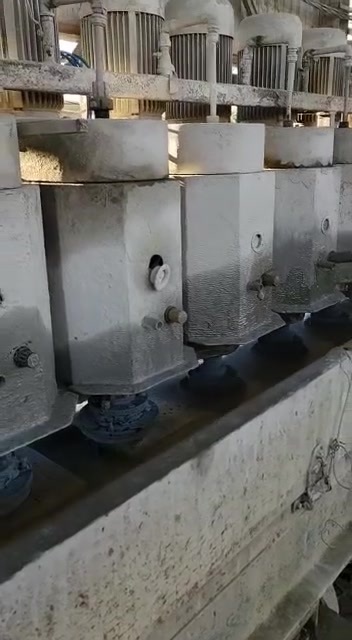

Product Video
Automatic stone grinder polishing machine
Automatic stone grinder polishing machine-1
Automatic stone grinder polishing machine-2
Production Equipment
Container shipments
Communication and exchange
FAQ
I need a stone cutting machine , can you give me some suggestions?
Sure, we will give suggestions of the most suitable machine and total solution of whole factory . Before that, we need to know some information, such as stone type, capacity, site condition ,etc., to determine the main parameters.
Which kind of materials can be processed on this machine?
marble B:Granite
Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience, As the machine made by JUXING factory, the quality can be trusted, and the most important thing is that we can do better after-sales service. You are welcome to our company.
How should I pay for my order ?
You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures / videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
How about the machine installation ?
if you need ,we can send engineer to your factory site to help you installation and train your operation engineer.
