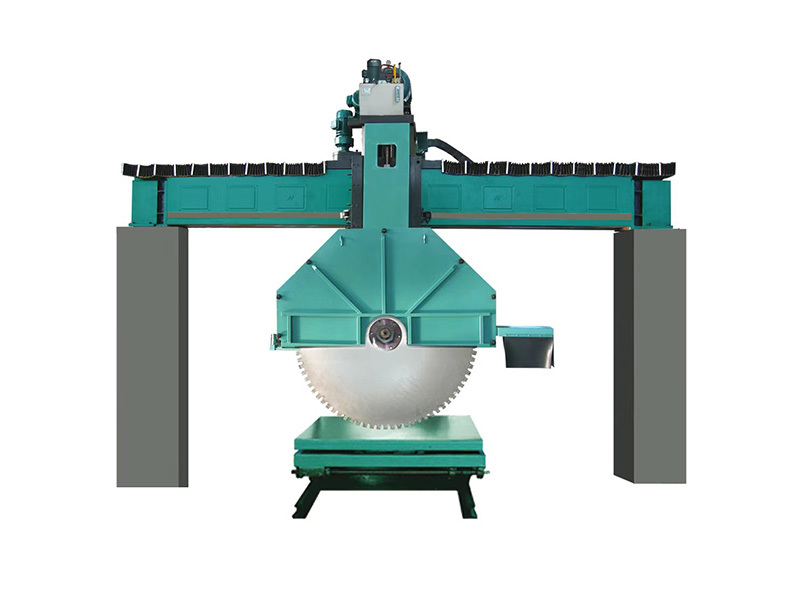

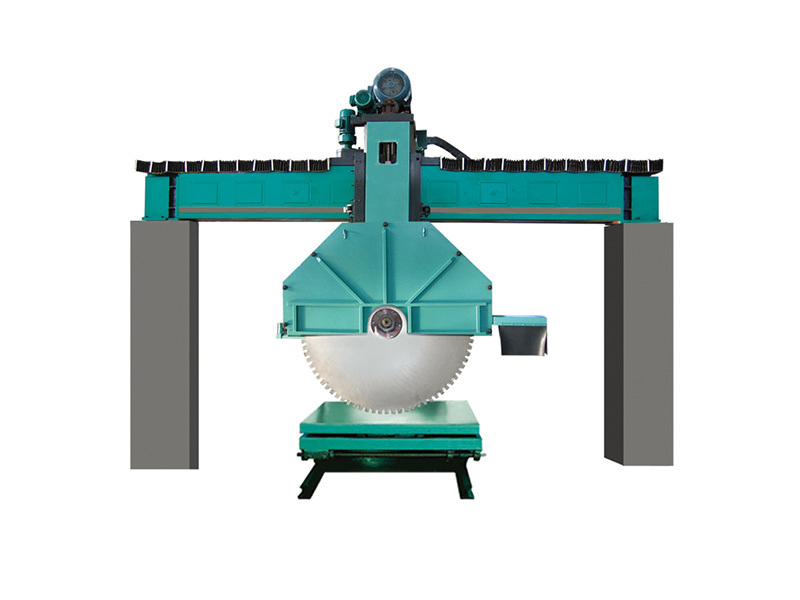

QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine
Key words:
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine
Classification:
Product Description
Equipment introduction
The QJS DIAMOND DISC STONE SAWING MACHINE is used for sawing marble and granite etc. It has the following features.
1)It is rationally constructed. Its working cost is low and works stably. It enjoys high working efficiency, high rate of finished product, no machinery smash, no rust and pollution. Its terminal product has clean, smooth and neat surface.
2)It is widely used to process all kinds of plates of such materials as marble, granite, and terrazzo, whose thickness is over 10mm, to make tombstone, flat plates, etc.
3)Convenience, safety and solidity are of its major features. Except the working table, the controlling unit introduces both manual and semi-automatic controls. Feeding speed can be adjusted according to the different hardness of plate sawed, which will guarantee safety and raise sawing efficiency. The electric unit introduces interlocking relay and safety device, which guarantee its safety and solidity. Effective cross stroke can design as customer demand, also can be equipped with large, middle and small multi-disc.
4)High speed diamond grinding and polishing techniques are introduced, which guarantees low resistance and high sawing efficiency, extends its diamond segments’ working life and raises the surface quality of its products.
Technical parameter
|
Model |
QJS160 |
QJS180 |
QJS220 |
QJS260 |
|
Max saw blade (mm) |
1600 |
1800 |
2200 |
2600 |
|
Max cross stroke(mm) |
2600 |
3100/3600 |
3600 |
3600/4100 |
|
Max Lifting stroke (mm) |
900 |
1100 |
1100/1300 |
1400 |
|
Total power (kw) |
33 |
33 |
40 |
40/48 |
|
Dimension(L*W*H)mm |
6800*5151*5210 |
7300*5150*5210 |
7800*5150*6000 |
7800*5150*7100 |
|
Total weight (Kgs) |
4500 |
6000 |
6500 |
7500 |
- 产品描述
-
- Commodity name: QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine
The QJS DIAMOND DISC STONE SAWING MACHINE is used for sawing marble and granite etc. It has the following features.
Equipment introduction
The QJS DIAMOND DISC STONE SAWING MACHINE is used for sawing marble and granite etc. It has the following features.
1)It is rationally constructed. Its working cost is low and works stably. It enjoys high working efficiency, high rate of finished product, no machinery smash, no rust and pollution. Its terminal product has clean, smooth and neat surface.
2)It is widely used to process all kinds of plates of such materials as marble, granite, and terrazzo, whose thickness is over 10mm, to make tombstone, flat plates, etc.
3)Convenience, safety and solidity are of its major features. Except the working table, the controlling unit introduces both manual and semi-automatic controls. Feeding speed can be adjusted according to the different hardness of plate sawed, which will guarantee safety and raise sawing efficiency. The electric unit introduces interlocking relay and safety device, which guarantee its safety and solidity. Effective cross stroke can design as customer demand, also can be equipped with large, middle and small multi-disc.
4)High speed diamond grinding and polishing techniques are introduced, which guarantees low resistance and high sawing efficiency, extends its diamond segments’ working life and raises the surface quality of its products.
Technical parameter
Model
QJS160
QJS180
QJS220
QJS260
Max saw blade (mm)
1600
1800
2200
2600
Max cross stroke(mm)
2600
3100/3600
3600
3600/4100
Max Lifting stroke (mm)
900
1100
1100/1300
1400
Total power (kw)
33
33
40
40/48
Dimension(L*W*H)mm
6800*5151*5210
7300*5150*5210
7800*5150*6000
7800*5150*7100
Total weight (Kgs)
4500
6000
6500
7500
Product Video

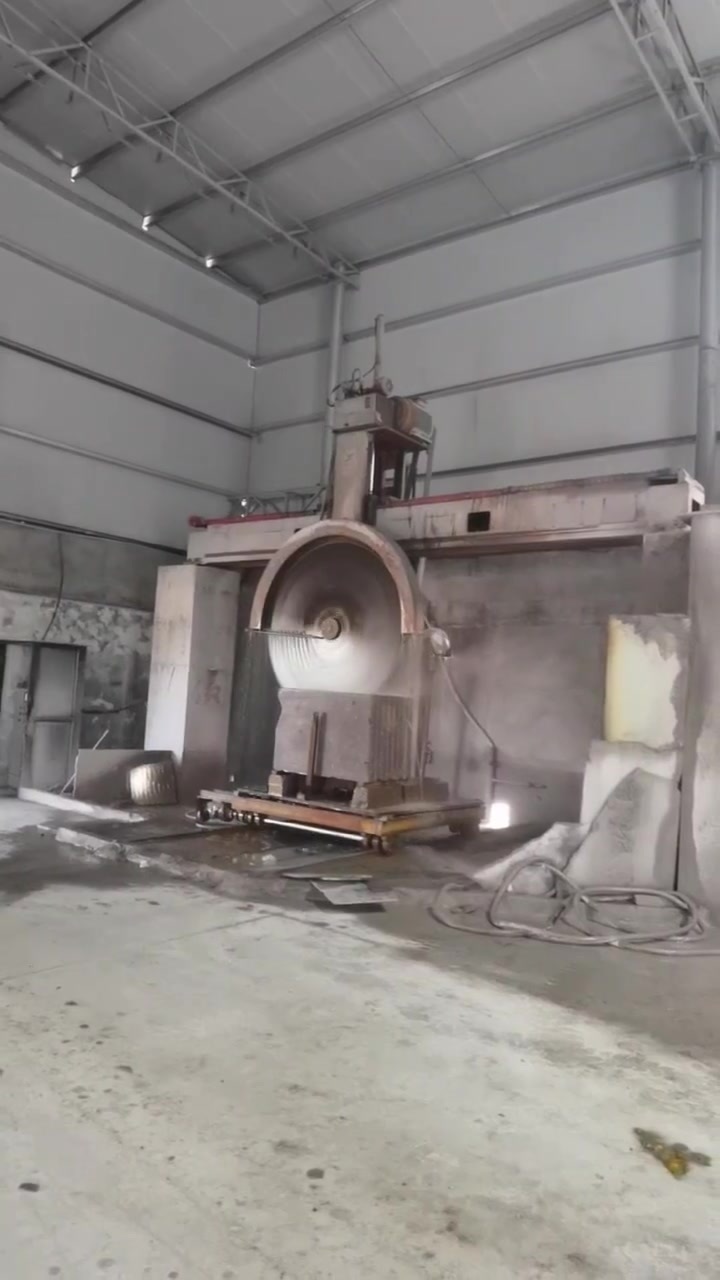

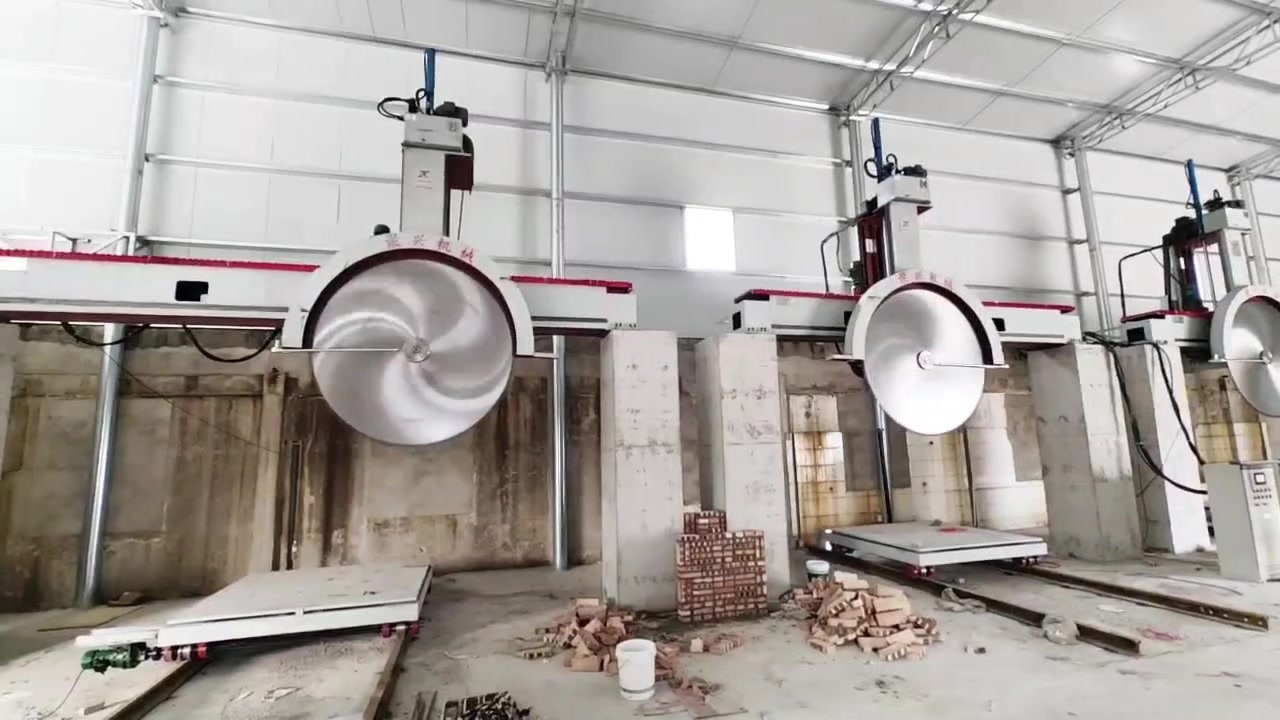

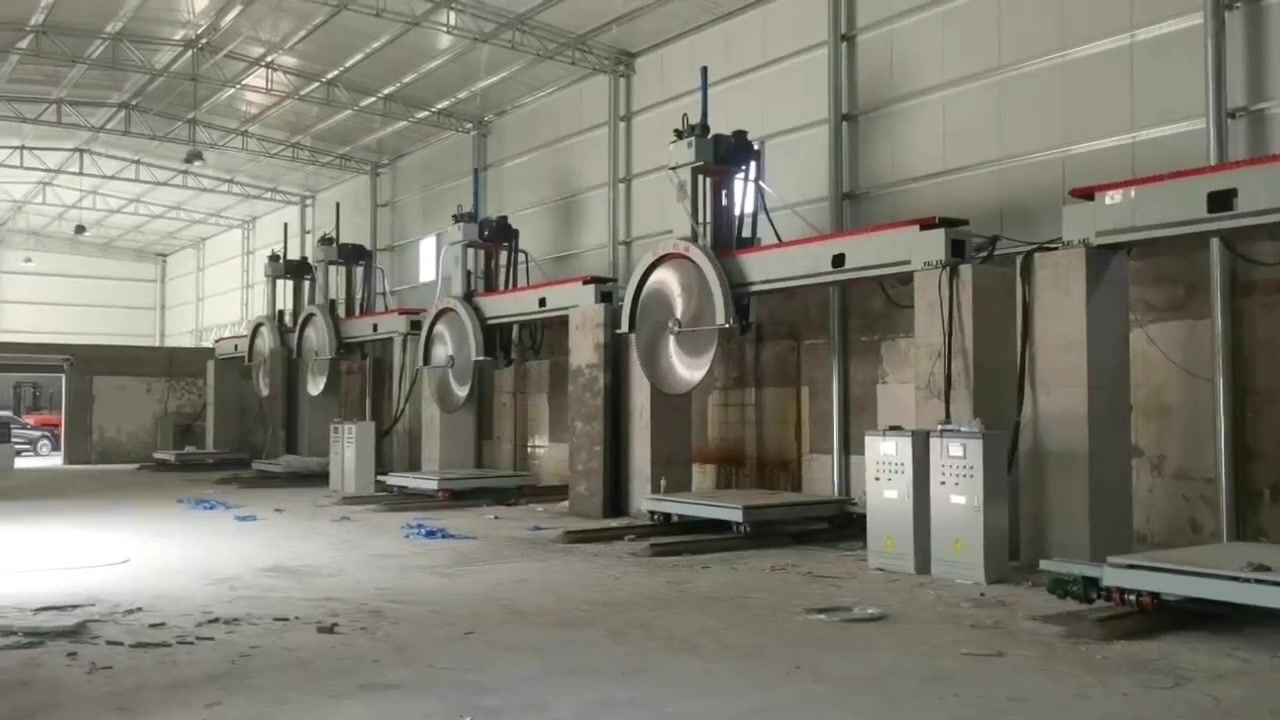

QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine-1
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine-2
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine-3
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine-4
QJS Bridge Type Diamond Disc Stone Sawing Cutting Machine-5
Production Equipment

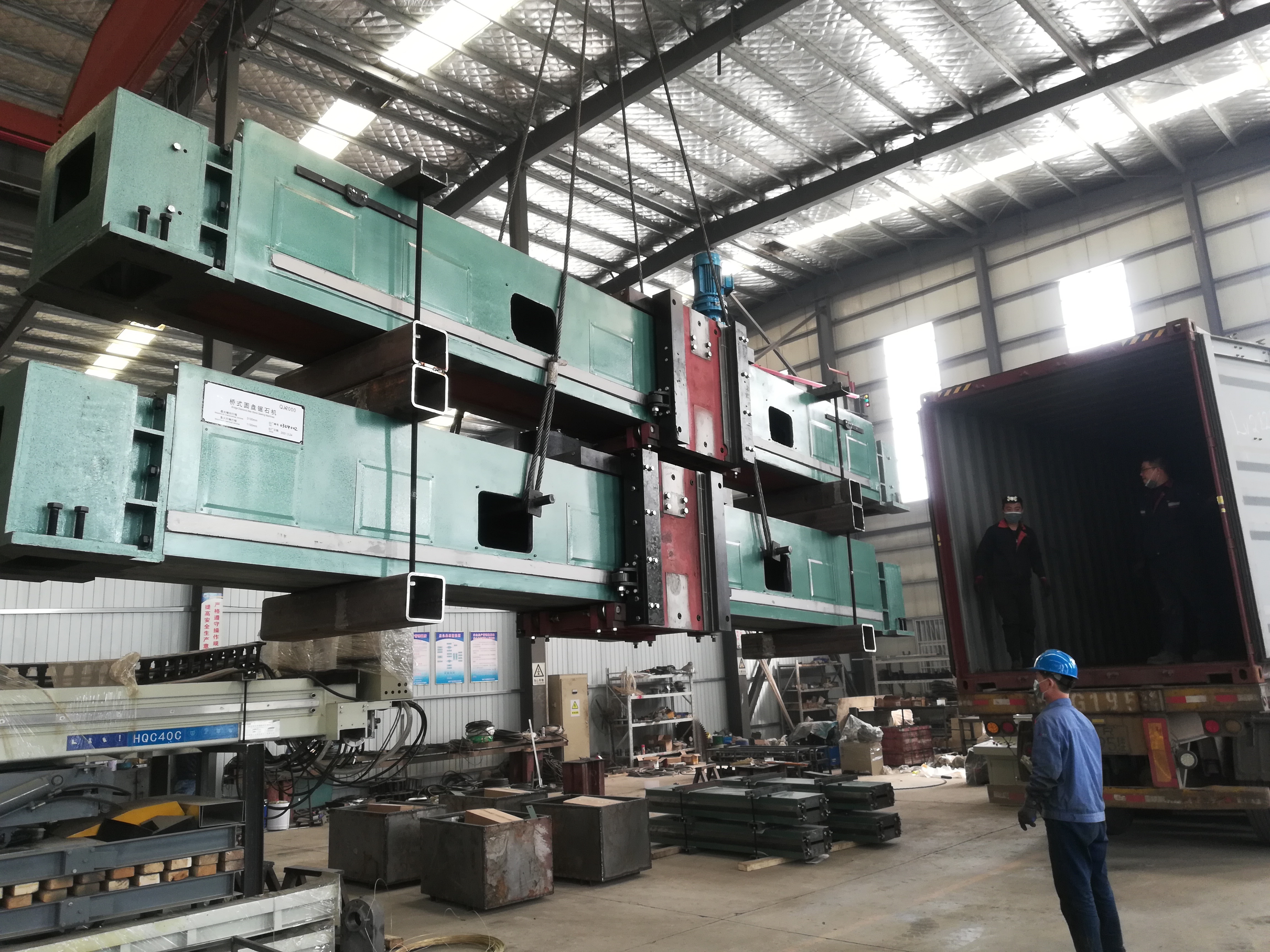

Container shipments
Communication and exchange
FAQ
I need a stone cutting machine , can you give me some suggestions?
Sure, we will give suggestions of the most suitable machine and total solution of whole factory . Before that, we need to know some information, such as stone type, capacity, site condition ,etc., to determine the main parameters.
Which kind of materials can be processed on this machine?
marble B:Granite
Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience, As the machine made by JUXING factory, the quality can be trusted, and the most important thing is that we can do better after-sales service. You are welcome to our company.
How should I pay for my order ?
You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures / videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
How about the machine installation ?
if you need ,we can send engineer to your factory site to help you installation and train your operation engineer.
